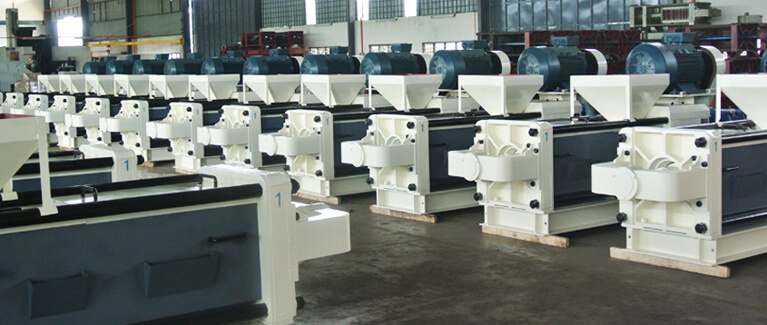

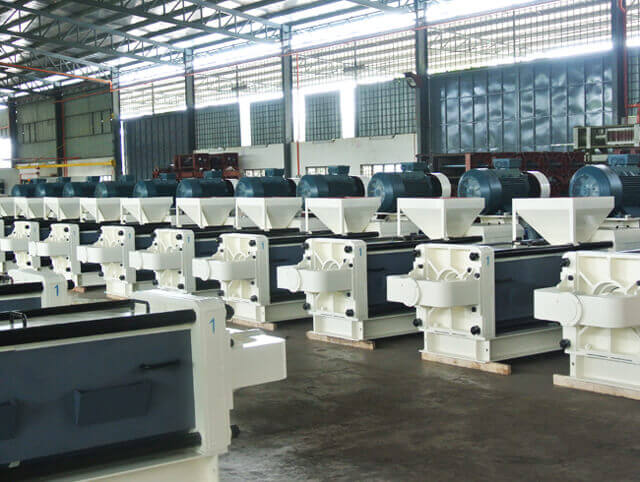

Copra / Coconut Machine - Copra / Coconut Oil Expeller Manufacturer
MBL is an oil expeller manufacturer specializing in Copra Oil Expeller or Coconut Oil Expeller which uses screw press processing technology refined and enhanced by our engineering and technical team. An all-in-one machine, it crushes and presses the copra or coconut, follow by oil extraction. Traditionally, the copra or coconut are pressed and crushed and transferred to another machine to be extracted.
The precise dimension and construction of each parts of the screw press are vital to ensure the final performance of our oil seed expellers.
| COPRA/COCONUT OIL EXPELLERS | ||||
| Model | EK-301-CT | EK-25-CT | EK-12-CT | |
| Capacity | ||||
| 1st Pressing (Ton / 24 Hours) | Copra: 50 Fresh Coconut : 100 |
25~30 | - | |
| 2nd Pressing (Ton / 24 Hours) | 15~17 | 12~15 | ||
| Performance | ||||
| Required Copra Quality | The moisture content of copra should not be more than 5%, based on M.E.O.M.A Standard | |||
| After 1st pressing | 16% to 20% oil content remain in cake | |||
| After 2nd pressing | 9% to 10% oil content remain in cake | |||
| Worm & Collar / Worm Screw | Hardfacing on worm & collar (worm screw) | |||
| Thickness of hardfaced layer : 6~8mm | ||||
| Longer life span | ||||
| Can be rebuilt about 4 times | ||||
| Reduce maintenance cost | ||||
| Gearbox | Triple Reduction Helical Gear | |||
| Motor | Foot Mounted Squirrel Cage (IEC Standard) | |||
| 90kw (125hp) | 55kw (75hp) | 55kw (75hp) | ||
| 1500rpm / 415V / 3PH / 50Hz | 1000rpm / 415V / 3PH / 50Hz | 1000rpm / 415V / 3PH / 50Hz | ||
| Dimension | Length (mm) | 4,932 | 4,411 | 4,425 |
| Width (mm) | 1,384 | 1,099 | 1,099 | |
| Height (mm) | 1,455 | 1,308 | 1,308 | |
| Approx. Weight (kg) | 5,900 | 4,200 | 3,800 | |
